Rigidax^® Removal Recommendation with SamSol^® Dewax

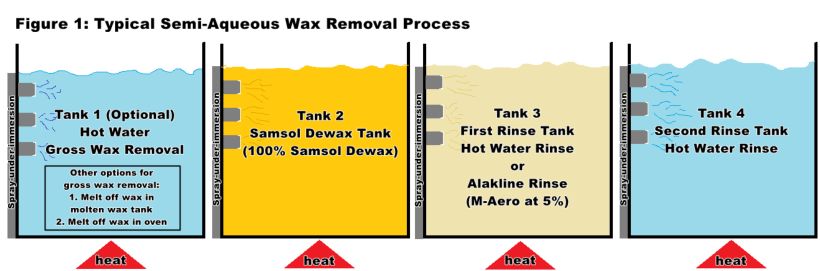

Step 1 Melt Out (Tank 1): Follow the recommended Rigidax® melt out cycle. This will remove 95% of the Rigidax leaving behind a thin film of wax.

Step 2 Wash (Tank 2): Wash the parts in a 100% concentration of Samsol Dewax heated to 60°C to 93°C, depending on the melting point of the wax. Use mechanical or ultrasonic agitation in the wash bath to speed the cleaning process.

Step 3 Rinse (Tanks 3 & 4): Rinse the residual Samsol® Dewax and dissolved soil from the parts. Although agitated water is the most common rinse. The process can be optimized by adding 5% solution of M Aero rinse agent in tank 3.

Step 4 Dry: (not pictured): If drying assistance is required to remove the residual rinse water from the parts, use ambient air, oven, forced air, centrifugal force, hand wipe, or any other appropriate method.

Approvals & Testing:

BOEING D6-17487 Revision R: Exterior and General Cleaners, Liquid Waxes Polishes and Polishing Compounds.

PWA 36604 (Revision E, 12/13/11): Approval of cleaners used in the manufacture and overhaul of parts. Stress Corrosion Testing in accordance with ASTM F945. Stress-Corrosion of Titanium Alloys by Aircraft Engine Cleaning Materials" Method A (Using both AMS 4911 & AMS 4916) Hot Corrosion AMS 4037 Aluminum, AMS 4375 Magnesium AMS 6359 Iron AMS 5508 Greek Ascoloy AMS 5544 Wispily, AMS 5536 Hastelloy X, AMS 5608 Haynes 188.

Rolls Royce CSS 253: Low Temperature Corrosivity. OMat 1/288D Wax Remover CSS No 254 Class A Semi-Aqueous Cleaning Fluids Suitable on Metallic Materials.

Samsol® Dewax is available from International Waxes (Rigidax).
It is not just a chemical, Samsol Dewax includes local expert technical support for the solvent, the dewaxing process and the required equipment.
